Simployer MIM-AD API

Modified on Fri, 4 Jul at 12:51 PM

Overview

This document describes the API for use with MIM or On-Premises Active Directory for customers who want to extract employee data and write back UPN and email.

MIM Integration

MIM is a solution that only offers scheduled jobs and will access an API endpoint at fixed times. The APIs are otherwise always available for queries or updates.

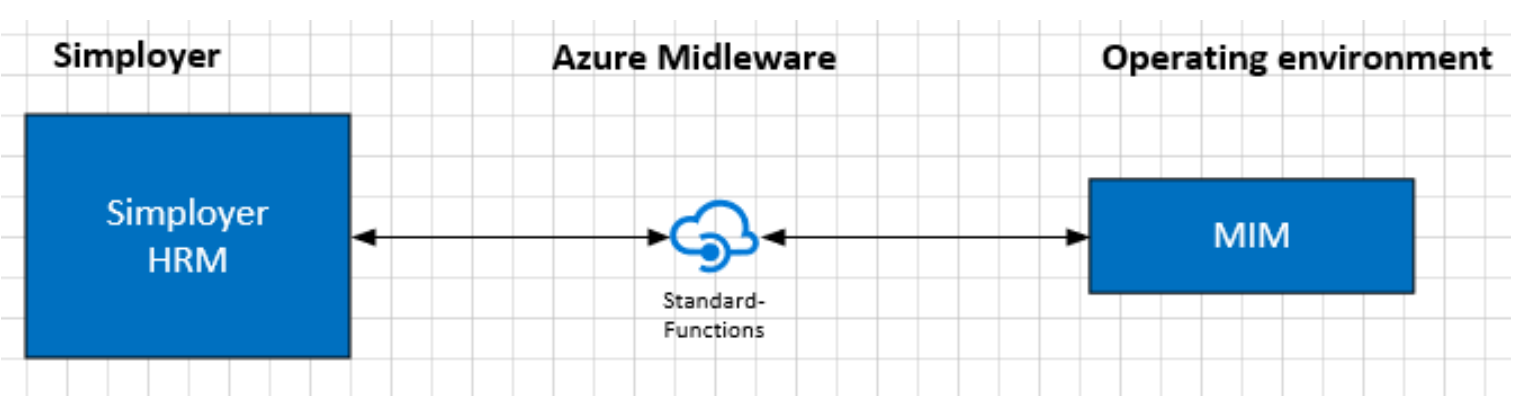

The proposed solution is to set up an API where MIM or other integration jobs can read personal data and update email addresses. The API will consist of two methods: ExportMIMData and ImportMIMData. A service provider will often prefer to extract all employees on each call. There is no need or functionality to transfer the entire organizational structure.

Mapping MIM – AD – Simployer

AD Name	Simployer Field
company	Employee in (Ansatt i)
department	Affiliation (Tilhørighet)
employeeID	Employee number (Ansattnummer)
employeeType	Personnel category
givenName	First name (Fornavn)
l	Postal code on department
manager	Immediate manager (Nærmeste leder)
mobile	Mobile
physicalDeliveryOfficeName	Department name (Navn på avdeling)
postOfficeBox	Address line 2 (Adr.linje 2) on department
postalCode	Postal code on department
roomNumber	Field does not exist in size and value, but a “Size and Value” can be created in Simployer
streetAddress	Address line 1 (Adr.linje 1) on department
sn	Last name (Etternavn)
telephoneNumber	Mobile
title	Job title (Stillingsbenevnelse)
preferredLanguage	Language (Språk)
Start date
Expire date	End date (Sluttdato)
Template	Template, template user defined as group
email	Email
UPN	External ID
CustomField1
CustomField2
CustomField3

API

ExportMIMData
URL: https://simployermim.azure-api.net/MIMFunctions/ExportMIMData
Method: GET

Authentication
Basic auth with username and password.

Headers

Key	Example value	Description
X-ITAS-FromUnitId	3	Unit
X-ITAS-UnitIdType	InternalId	Identifier type: DepartmentCode or InternalId
X-ITAS-IncludeSV	Category:customAttribute1	SalaryType:customAttribute2
x-ITAS-PublicCustomerId		Public customer id
x-ITAS-ApiKey		API key
Ocp-Apim-Subscription-Key		Subscription key
Content-Type	application/json

Example response body
JSON array with person data:

json
CopyEdit
[  {    "company": "Selskap AS",    "department": "100",    "employeeID": "55555555-5555-5555-5555-555555555555",    "employeeNumber": "25",    "employeetype": "Fast ansatt",    "givenName": "Kari",    "location": "1635",    "manager": "Ola Hansen",    "mobile": "98989898",    "office": "Sarpsborg",    "postOfficeBox": "PB 243",    "postalCode": "1635",    "roomNumber": "Etg. 2",    "state": null,    "streetAddress": "Kongens gate 2",    "surname": "Hansen",    "telephone": "98989898",    "title": "Lærling",    "countryCode": "NO",    "preferredLanguage": null,    "hireDate": "23.01.2018",    "expireDate": "",    "template": "Standard",    "email": "kari@simployer.com",    "adName": "kari@simployer.com",    "customAttribute1": null,    "customAttribute2": null,    "customAttribute3": null  }
]

ImportMIMData
URL: https://simployermim.azure-api.net/MIMFunctions/ImportMIMData
Method: POST

Authentication
Basic auth with username and password.

Headers

Key	Example value	Description
Ocp-Apim-Subscription-Key		Subscription key
Content-Type	application/json
X-ITAS-UpdateUserName	False	Set to true to update user name with adName

Body
JSON array with MIM import data:

json
CopyEdit
[  {    "employeeID": "55555555-5555-5555-5555-555555555555",    "adName": "kari@simployer.com",    "mail": "kari@simployer.com"  }
]

Field description

Field	Max Length / Format	Required
employeeID	GUID	Yes
adName	Max 100 characters	Yes
mail	Max 50 characters	Yes

Simployer Customizations

The ExportMIMData method provides an export from Simployer of persons with job information. The most natural location in Simployer is to use the address at the unit level as the location when transferring to the service provider or AD. This means the organizational structure in Simployer must be updated with address information. The postal place represents the location. Location information can be used to control setups such as local printers.

Some service providers use template users to predefine a set of accesses. The suggested solution in Simployer is to create groups representing these template users. These groups can be linked directly to a person and/or to a job position. Some users will require cross-functional access, which will require separate templates.

Preferred language is used to set the default language for the user. In Simployer, this is the language field under account information.

Functionality to activate/deactivate persons can be controlled using the start and end date fields. In AD, there is an expire date which can be mapped to the end date in Simployer.

Prerequisites

Export extracts persons based on employee number
Address must be entered in the organization at the unit level
